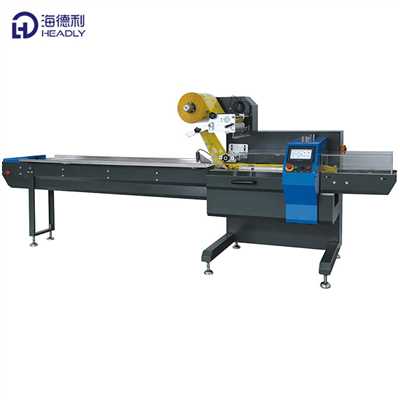

HDL-350DS Double-servo High Speed Packaging Machine
Product Classification：Horizontal packing machine
Functional overview：
Suitable for packaging kinds of regular objects such as biscuits, breads, tissues, sanitary towels, etc
（一） Features
1, Dual servo motors and single frequency conversion control,bag length can be set and cut in one step,
saving time and film.
2, New outlook design which is beautiful and easy to operate.
3, Automatic stop in case of material absence, run film cutter stop, push material automatic make up.
4,Temperature control module inside, temperature independent PID control, accurate and suitable for packaging different material.
5, Prevent from cutting material function without stop, prevent from cutting material, improve the operating efficiency of the machine and reduce equipment loss.
6, Touch interface, easy and quick setting and operating. Self failure diagnosis,clear failure display.
7, Positioned stop function,without sticking cutter or wasting film.
8, Simple driving system,reliable working,convenient maintenance.
9, All control is realized though software, easy for function adjusting and technical upgrade.
（二）Specifications
|
機型 Type
|
HDL--350DS
|
|
薄膜寬度Film width
|
Max. 350mm
|
|
制袋長度 Bag length
|
120-350mm
|
|
制袋寬度 Bag width
|
50~160mm
|
|
産品高度Product height
|
10~80mm
|
|
膜卷直徑 Film roll diameter
|
Max. 320mm
|
|
包裝速度packing speed
|
30～2500包/分（視産品條件）
|
|
電源規格 power
|
220V,50/60HZ,3.2Kw
|
|
機器尺寸 machine size
|
(L)4200×(W)960×(H)1520mm
|
|
機器質量 weight
|
500Kg
|
|
備注
|
|
